| Centrální sklad i | 3 ks |
|---|---|
| Čárový kód: | |
| Identifikátor zboží: | TMELP0125CMKW01A |
| Balení: | |
| Minimální množství: | 1 |
| Výrobce: | NKK SWITCHES |

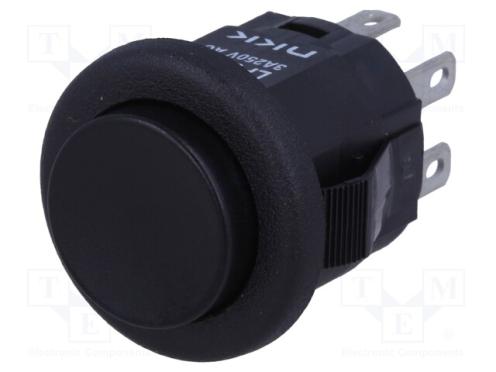

Switch push-button Pos 2 DPDT 3A/250VAC 3A/30VDC ON-(ON) - Popis produktu
| Manufacturer | NKK SWITCHES |
|---|---|
| Type of switch | push-button |
| Number of positions | 2 |
| Contacts configuration | DPDT |
| AC contacts rating @R | 3A / 250V AC |
| DC contacts rating @R | 3A / 30V DC |
| Switching method | ON-(ON) |
| Leads | for soldering |
| Operating temperature | -10...50°C |
| Button shape | round |
| Actuator colour | black |
| Min. insulation resistance | 200MΩ |
| Body dimensions | Ø20x14mm |
| Contact resistance | 50mΩ |
| Manufacturer series | LP |
| Stable positions number | 1 |
